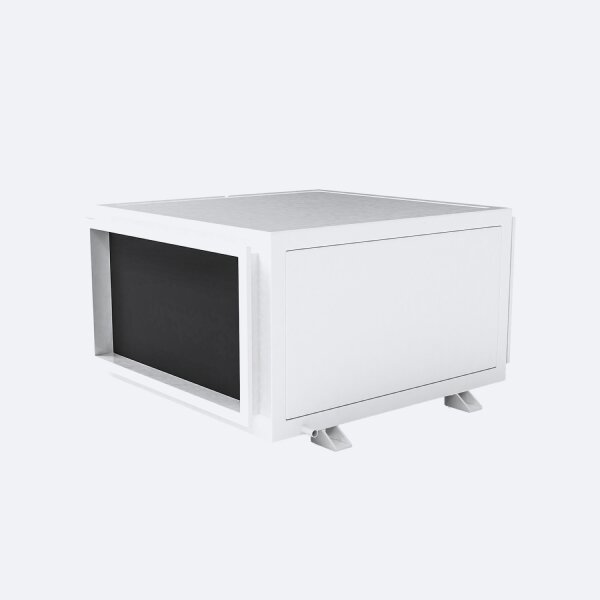

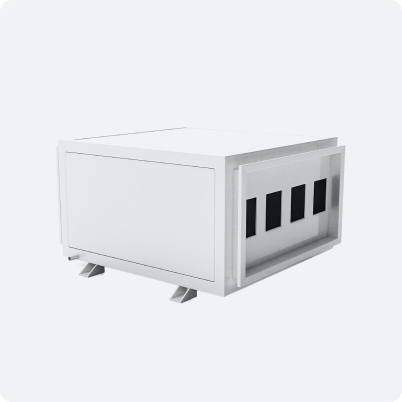

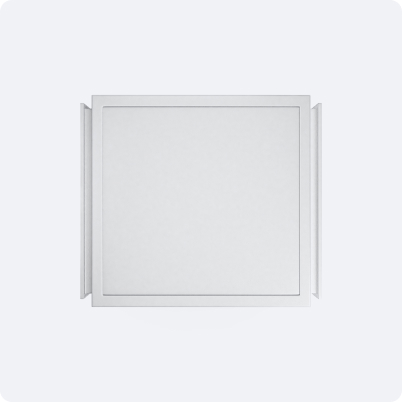

Engineered for Sub-Zero Environments: The Cold Room Dehumidification Unit

Refrigerated storage facilities and walk-in coolers present a severe thermodynamic challenge for moisture extraction. ^{Because the ambient air is already chilled close to or below freezing, standard condensation-based dehumidifiers immediately ice over and suffer mechanical failure.} A dedicated cold room dehumidification unit is structurally engineered to operate continuously in these extreme microclimates. By aggressively stripping water vapor from the freezing air, these highly specialized systems prevent localized dew point drops, completely eliminating the formation of condensation, frost, and dangerous ice accumulation on the floor and storage racks.

Protecting High-Value Assets via a Low-Temperature Moisture Extractor

Strict environmental regulation within refrigerated zones is mandatory to protect sensitive inventory from microscopic moisture damage. In the biotechnology sector, preserving the chemical stability of materials during cold storage is paramount. A heavy-duty low-temperature moisture extractor is structurally required to prevent condensation from compromising sensitive peptide synthesis batches and delicate protein expression samples. By holding the internal vapor pressure at a strictly controlled, ultra-low parameter, the equipment ensures these high-value organic compounds remain completely free from moisture-induced chemical degradation and biological contamination.

Advanced Defrost Mechanics in a Cold Storage Air Dryer

Operating mechanical climate equipment in freezing temperatures requires either specialized thermal intervention or alternative physical extraction methods. For environments operating just above freezing, our cold storage air dryer utilizes an active hot gas bypass defrost system. A digital PLC detects frost accumulation on the evaporator coils and automatically redirects heated discharge refrigerant to rapidly melt the ice, allowing the condensation cycle to resume in minutes. For deep-freeze environments well below 0°C, we deploy advanced desiccant rotors that physically adsorb moisture directly from the sub-zero airstream, completely bypassing the condensation phase and the risk of internal freezing.

System Efficiency and the Chiller Room Humidity Controller

^{Unregulated moisture in a cold room doesn't just damage inventory; it drastically reduces the efficiency of the facility's primary refrigeration infrastructure.} When humid air infiltrates a walk-in cooler, the water vapor rapidly condenses and freezes directly onto the main chiller coils, creating an insulating layer of ice that forces the cooling compressors to run continuously. Deploying a chiller room humidity controller intercepts this moisture before it reaches the primary cooling matrix. ^{By keeping the facility air dry, the dehumidifier prevents frost fouling, thereby drastically reducing the defrost cycles and overall energy consumption of the building's central refrigeration plant.}

Facility Integration of Refrigerated Environment Dehumidifying Equipment

Machinery exposed to continuous freezing conditions must be structurally insulated against thermal loss and physical degradation. We construct the chassis of every refrigerated environment dehumidifying equipment using double-walled, heavy-gauge galvanized steel with internal thermal breaks to protect the electrical contactors from extreme temperature shifts. For long-term autonomous operation, water routing is critical. The automated continuous drainage systems are configured with heat-traced condensate lines, ensuring that the extracted liquid water is safely expelled from the insulated building envelope without the risk of the drainage pipes freezing, rupturing, or backing up onto the facility floor.
