| Item | SSPAC-27 (Single Duct) | SSPAC-35 (Dual Duct) | SSPAC-40 (Dual Duct) | SSPAC-45 (Dual Duct) | SSPAC-50 (Dual Duct) |
|---|---|---|---|---|---|
| Model | SSPAC-27 | SSPAC-35 | SSPAC-40 | SSPAC-45 | SSPAC-50 |
| Type | Single Duct | Dual Duct | Dual Duct | Dual Duct | Dual Duct |
| Cooling Method | Compressor Cooling | Compressor Cooling | Compressor Cooling | Compressor Cooling | Compressor Cooling |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Cooling Capacity | 2700W | 3500W | 4000W | 4500W | 5000W |
| Applicable Area | 10 m² | 15 m² | 20 m² | 25 m² | 30 m² |
| Input Power | 1030W | 1500W | 1800W | 2000W | 2300W |
| Compressor | Large 1P | Large 1.5P | Small 2P | 2P | Large 2P |
| Number of Cold Air Outlets | 1 | 2 | 2 | 2 | 2 |
| Circulating Air Volume | 500 m³/h | 800 m³/h | 1200 m³/h | 1200 m³/h | 1500 m³/h |
| Cold Air Outlet Diameter | 120mm | 120mm | 120mm | 120mm | 120mm |
| Hot Air Outlet Diameter | 180mm | 220mm | 220mm | 220mm | 220mm |
| Water Tank Capacity | 10L | 20L | 20L | 20L | 20L |
| Control Mode | Touch Screen / Automatic Control | Touch Screen / Automatic Control | Touch Screen / Automatic Control | Touch Screen / Automatic Control | Touch Screen / Automatic Control |
| Refrigerant | R410a/R22 | R410a/R22 | R410a/R22 | R410a/R22 | R410a/R22 |
| Timer Mode | 24-hour Cycle Timer | 24-hour Cycle Timer | 24-hour Cycle Timer | 24-hour Cycle Timer | 24-hour Cycle Timer |
| Fan Speed Adjustment | High / Low Dual Speed | High / Low Dual Speed | High / Low Dual Speed | High / Low Dual Speed | High / Low Dual Speed |
| Product Dimensions (mm) | 475×425×855 | 520×505×1020 | 520×505×1020 | 520×505×1020 | 520×505×1020 |
| Packing Dimensions (mm) | 525×475×975 | 570×555×1140 | 570×555×1140 | 570×555×1140 | 570×555×1140 |
| Gross Weight (kg) | 55 | 59 | 65 | 73 | 78 |

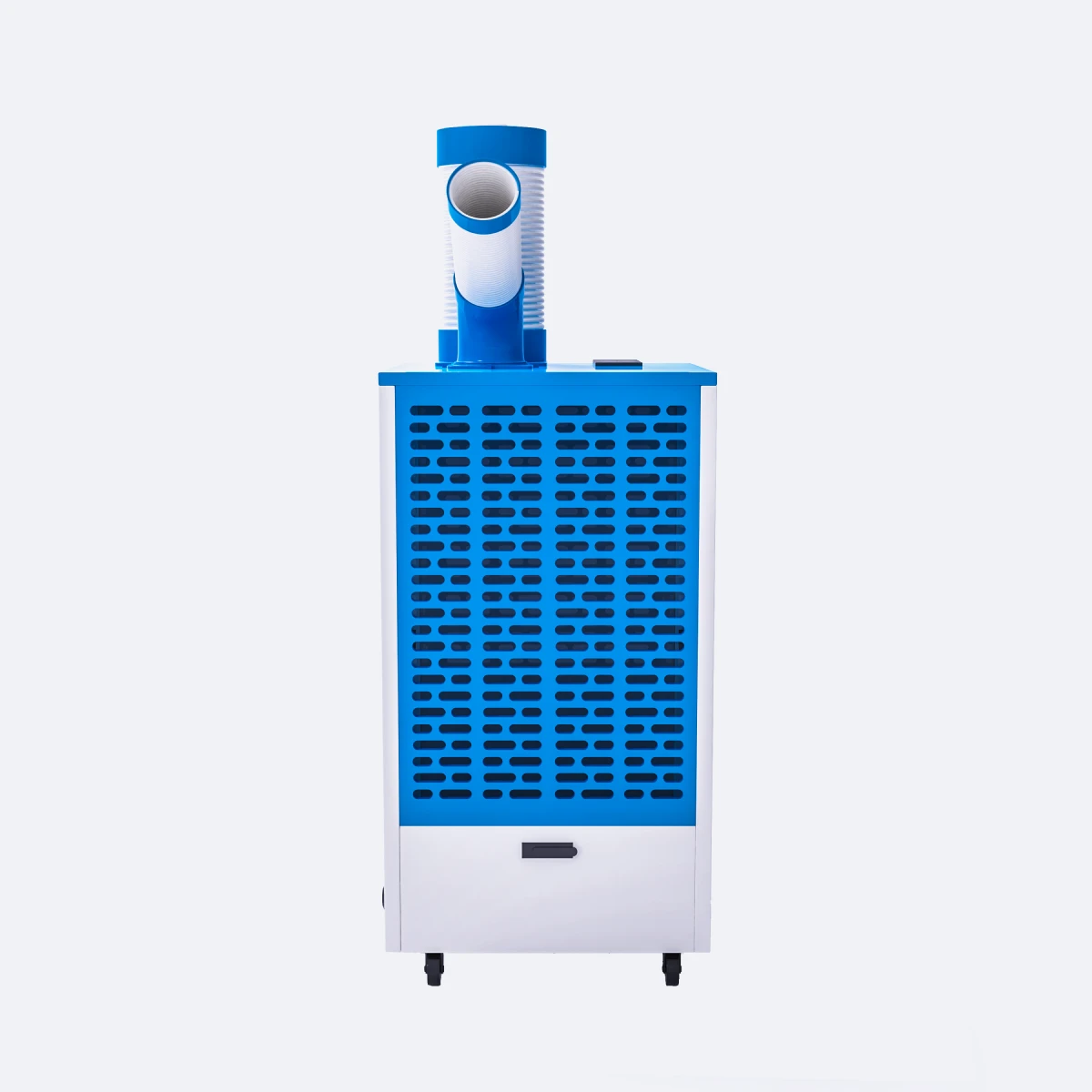

Mobile Air Conditioning Units for Industrial Spot Cooling
In large-scale manufacturing and commercial environments, cooling the entire facility is often impractical or highly energy-intensive. Our mobile air conditioning units are engineered to provide targeted temperature control exactly where it is needed. Designed as self-contained systems, these units bypass the need for complex ductwork installations. Equipped with heavy-duty industrial casters, they can be swiftly repositioned across the factory floor to address localized heat build-up, protect sensitive equipment, or improve the working conditions of operational personnel in high-temperature zones.
The Engineering Behind Our Portable Cooling Systems
Shishuo prioritizes durability and sustained performance in our equipment design. The core of our portable cooling systems features high-efficiency compressors and optimized heat exchangers built to withstand continuous operation in demanding environments. The outer housing is constructed from rugged, impact-resistant metal cabinetry, protecting the internal components from the physical hazards typical of industrial workspaces. Furthermore, the centrifugal fans are calibrated to deliver high-velocity airflow, ensuring rapid heat displacement and stable temperature reduction in the targeted area.
Key Applications for Movable Spot Coolers
Versatility is the primary advantage of freestanding cooling equipment. Movable spot coolers are deployed across a wide range of sectors to solve specific thermal challenges. Common applications include:
- Manufacturing & Assembly Lines: Providing direct cooling to machinery prone to overheating, such as injection molding equipment or CNC machines.
- Server Rooms & Data Centers: Serving as emergency backup cooling or handling supplemental thermal loads to prevent network hardware failure.
- Warehousing & Logistics: Creating cooled workstations for personnel in large, unconditioned storage facilities.
- Automotive & Aviation Repair: Delivering localized climate control in open-bay garages and hangars.
Setup and Exhaust Management for Freestanding AC Equipment
Operational simplicity minimizes downtime. Our freestanding AC equipment is designed for immediate plug-and-play functionality upon delivery. The systems require minimal setup: operators simply connect the power and direct the cold air nozzles toward the target. To manage the heat extracted from the cooled area, these units utilize flexible, high-temperature exhaust ducts. This ducting can be easily routed out of a window, through a wall vent, or into a drop ceiling plenum. Condensate management is equally straightforward, with options for integrated collection tanks or continuous gravity drainage.
Maintenance of Industrial Portable Climate Control Devices
Reliable equipment requires predictable, straightforward maintenance. We engineer our industrial portable climate control devices with accessibility in mind. The washable air filters can be removed and cleaned without specialized tools, ensuring consistent airflow and preventing dust accumulation on the evaporator coils. Side access panels allow maintenance technicians to quickly inspect electrical connections, verify refrigerant levels, and perform routine cleaning. This practical design approach reduces lifetime maintenance costs and ensures the equipment remains operational through heavy seasonal use.
